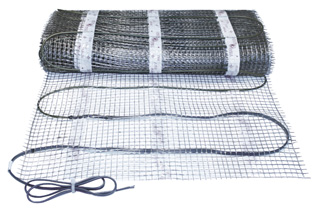

For Under Tiles, Vinyl & Amtico
Highest quality electric underfloor heating engineered in
Germany for under tiles, vinyl and Amtico.
- 1 Easy to install with sticky underside
- 2 Low cost
- 3 Minimal wiring and earth shielded
-
4
Primary Heating - The powerful
output is enough
to provide complete heating in most
rooms at 150W/m2 - 5 Ultra thin & fast response time
- 6 16 year manufacturers warranty
Available Mat Sizes
Please note that all mat sizes have a standard width of 0.5m
| Length (m) | 2.0 | 3.2 | 4.2 | 5.4 | 6.8 | 7.8 | 9.6 | 11.4 | 13.6 | 15.8 | 18 | 22 | 25.4 | 28.0 |
| Area (m2) | 1.0 | 1.6 | 2.1 | 2.7 | 3.4 | 3.8 | 4.8 | 5.7 | 6.8 | 7.8 | 9 | 11 | 12.7 | 14 |
| Watts | 145 | 240 | 320 | 420 | 510 | 595 | 710 | 890 | 1015 | 1130 | 1335 | 1650 | 1840 | 2175 |

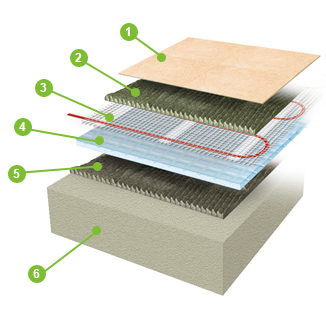

Under Tiles
- 1 Tiles
- 2 Flexible Tile Adhesive 8mm
- 3 Heating Cable Mat
- 4 Insomax, Marmox or Equivalent Insulation
- 5 Flexible Tile Adhesive
- 6 Floor Slab
Under Vinyl/Amtico
Simply pour latex based self-levelling compound on top of the cable and insulation before glueing the vinyl or Amtico on top.

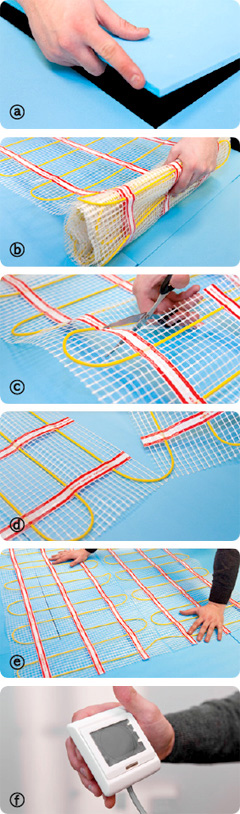

Basic Installation Method
Ensure all mats are working by testing the
cables using a multi-meter.
This is not an installation guide.
Please read the full installation manual before installing.
-
1 Prepare sub-floor
by removing all dust and debris.
-
2 Fix Insomax insulation
to the sub-floor using a flexible tile adhesive. Ensure that the whole surface is covered [image a].
-
3 Position the Web-Tech Mats
Once the insulation is fixed, unroll and correctly position the Web-Tech Mats. [image b]
-
4 Make turns in the mat.
Cut the mesh to make turns in the mat. Be careful not to cut the wire itself! [image c, d, e]
-
5 Run the cold cable to the thermostat
-
6 Re-test the mats
Re-test the mats to ensure none have been damaged during installation.
-
7 Lay the thermostat floor sensor
in the conduit and place between mat turns.
-
8 Start tiling
With the system turned off, tile directly on top using a flexible tile adhesive. If the final flooring is vinyl or Amtico, use latex based self-levelling compound and lay the final flooring once dry.
Specification
Specification
Mat Thickness : 4mm
Output Rating : 150W/m2
Double Conductor Cabling
16 Year Warranty
Engineered in Germany

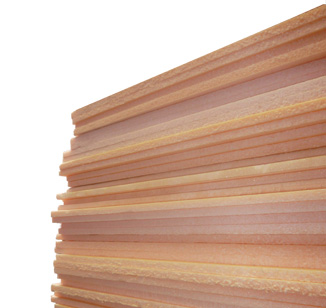

Insomax Insulation for Web-Tech
The use of insulation redSuces warm up time and running costs.
- Made up of extruded polystyrene foam
- Available in 6mm and 10mm depths
- Produced environmentally friendly, without the use of CFC or HCFC blowing agents, have zero Ozone Depletion Potential (ODP) and are fully recyclable
- Lightweight and can be cut with a knife!
- Excellent structural strength and compression resistance - withstanding both short term and long term static loads
- Highly resistant to water absorption and are rot resistant
